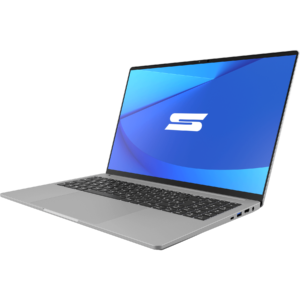

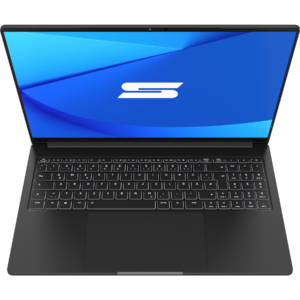

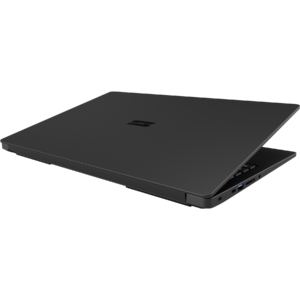

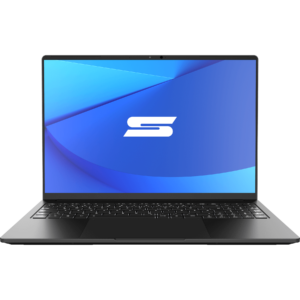

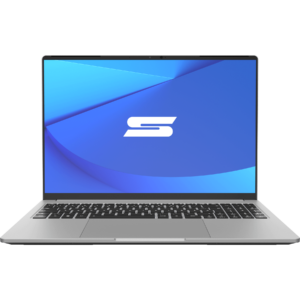

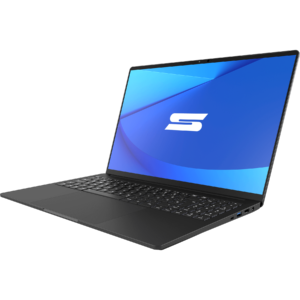

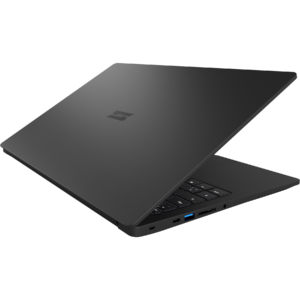

SCHENKER VISION 16 Pro

In the SCHENKER VISION 16 Pro, high-performance hardware and a slim magnesium chassis merge to form a lightweight, ultra-portable powerhouse for demanding productive as well as creative tasks. With its timeless minimalist design and a high-resolution 16-inch display in 16:10 format, the laptop is all about modern style and optimum functionality. The latest Intel processors with 14 cores and the efficient top models from NVIDIA’s current range of graphics cards ensure impressive performance despite the compact format. A Windows Hello-compatible webcam with Full HD resolution is convincing in video conferences. Supreme mobile style – available in black or silver.

Gefertigt in
Deutschland

Maximale Performance

Indivudell
konfigurierbar

Zukunftssicheres Konzept

SCHENKER VISION 16 Pro

In the SCHENKER VISION 16 Pro, high-performance hardware and a slim magnesium chassis merge to form a lightweight, ultra-portable powerhouse for demanding productive as well as creative tasks. With its timeless minimalist design and a high-resolution 16-inch display in 16:10 format, the laptop is all about modern style and optimum functionality. The latest Intel processors with 14 cores and the efficient top models from NVIDIA’s current range of graphics cards ensure impressive performance despite the compact format. A Windows Hello-compatible webcam with Full HD resolution is convincing in video conferences. Supreme mobile style – available in black or silver.

Gefertigt in
Deutschland

Maximale Performance

Indivudell
konfigurierbar

Zukunftssicheres Konzept

Razor-sharp

With its enhanced WQXGA resolution (2,560 x 1,600 pixels), the high-quality IPS panel has everything you need for relaxed, continuous work. In addition to the razor-sharp image, the display convinces with intense colours, high contrast and excellent black levels. The 16:10 format provides more vertical viewing area – practical, for example, for displaying two programme windows side by side or additional operating elements in a software program.

Realistic display

Especially in the field of professional image and video editing, the most accurate colour representation possible is required. The display scores highly with its high brightness of 350 nits and 99 % coverage of the sRGB colour space, making it suitable for even the most demanding visual-creative tasks. In addition, fast 240 Hz technology provides the right conditions for smooth gaming after work and the panel has an additional 60 Hz mode for energy-saving operation whilst on the move.

Razor-sharp: 3K display in 16:10 format

With a resolution of 2880 x 1800 pixels, the 380 nits bright 3K IPS display delivers a breathtakingly sharp and precise image. For creative professionals, the 16:10 screen format is a bonus: the expanded, vertical screen area makes it easier to work in common photo and video editing software and, last but not least, also provides extra viewing comfort when surfing the Internet. 99 percent coverage of the sRGB colour space, a particularly smooth refresh rate of 90 Hz and an opening angle of up to 160 degrees round off the features of this high-end display.

High-quality magnesium chassis

Perfect workmanship

The torsion-resistant chassis of the SCHENKER VISION 16 Pro is made of a robust AZ91D magnesium alloy. In addition to increased stability, the high-end material ensures better temperatures: in contrast to the material used in conventional laptop housings, the magnesium alloy dissipates heat from components such as the graphics card and processor much faster, thus aiding cooling.
SCHENKER VISION 16 L22 Pro chassis
SCHENKER VISION 16 Pro L22 black thin bezel

Ultraportable design

The lightest laptop of its kind

The SCHENKER VISION 16 Pro is the lightest high-performance laptop in the world and one of the thinnest 16-inch devices in its performance class. A weight of just 1.6 kg meets a very flat height of only 17.1 mm and the latest high-end processors and graphics cards with ground-breaking, modern features – perfect for anyone who is on the move a lot and does not want to miss out on very high content creation and application performance when realising demanding, professional projects.
SCHENKER VISION 14 display

The housing of the SCHENKER VISION 14 is made of an innovative AZ91D magnesium alloy. As a result and depending on the selected configuration it weighs between 1.1 and 1.3 kilograms even when fully equipped. Nevertheless, the slim chassis is exceptionally stable. In addition to a high-quality feel, the material is also characterised by excellent thermal properties and thus provides the optimal conditions for quiet and cool operation with permanently high performance. As an extremely portable state-of-the-art lightweight, the SCHENKER VISION 14 sets a new standard.



High-quality magnesium chassis
Extremely light & robust

The housing of the SCHENKER VISION 14 is made of an innovative AZ91D magnesium alloy. As a result and depending on the selected configuration it weighs between 1.1 and 1.3 kilograms even when fully equipped. Nevertheless, the slim chassis is exceptionally stable. In addition to a high-quality feel, the material is also characterised by excellent thermal properties and thus provides the optimal conditions for quiet and cool operation with permanently high performance. As an extremely portable state-of-the-art lightweight, the SCHENKER VISION 14 sets a new standard.

SCHENKER VISION 16 L22 CPU

Intel Core i7-12700H
Impressive performance

Intel processors from the 12th Core generation bring the impressive performance of up to 14 computing cores to high-end notebooks. The Core i7-12700H is one of the spearhead mobile high-performance CPUs and, in accordance with the hybrid Big Little architecture, combines six performance and eight efficiency cores into a powerful computing unit. In multi-core applications, the processor trumps the performance of the previous generation by around 20 percent – and is optimally cooled thanks to an innovative liquid metal heat transfer medium.

SCHENKER VISION 16 Pro L22 NVIDIA

NVIDIA GeForce RTX 30
Efficient 3D powerhouses

Fastest possible 3D rendering, first-class GPU acceleration in creative applications and the latest feature set in a phenomenal Thin&Light chassis: the SCHENKER VISION 16 Pro uses customised, efficiency-optimised versions of NVIDIA’s current top graphics chips for this purpose. Depending on individual performance requirements, there is a choice of an RTX 3080 with a full 16 GB of GDDR6 memory, an RTX 3070 Ti or an RTX 3060 as a high-performance entry-level option.

SCHENKER VISOIN 16 L22 ports

Wide choice of external ports

State-of-the-art connectivity

With three display outputs ready for multi-monitor setups: Thunderbolt 4 and USB-C, each with integrated DisplayPort stream and the option to charge the laptop via a USB-C power supply, as well as HDMI 2.1 with direct connection to the NVIDIA graphics card, allow native image output to up to three additional external monitors. Thus, the laptop is perfectly prepared for creative multitasking and in combination with modern docking stations, excels at the stationary workplace. A card reader for full-size SD cards serves for convenient data exchange, with two USB-A ports for connecting further peripherals.  



Up to 64 GB RAM & 2 M.2 SSDs

Generous memory expansion

Despite the slim laptop design, the SCHENKER VISION 16 Pro consistently relies on plugged-in instead of soldered memory components and can therefore be configured and upgraded completely freely according to personal requirements. The maximum configuration includes up to 64 GB DDR5-4800 RAM and two lightning-fast M.2 SSDs of the latest generation – connected via PCI Express 4.0.

SCHENKER VISION 16 Pro L22 touchpad

Comfortable keyboard

In productive use, the SCHENKER VISION 16 Pro’s keyboard, which is suitable for multiple typists’ ergonomic preferences, draws on a full range of functions – with a separate numberic keypad, dedicated full-size arrow keys and a practical Fn-Lock function for permanently switching the F keys to the secondary assignment. In addition to a clearly defined pressure point, the input device is characterised by a particularly quiet key stroke and a multi-level, adjustable brightness neutral white backlight.

Huge glass touchpad

On a generous gliding surface of 15.4 x 10 cm, the high-quality glass touchpad of the SCHENKER VISION 16 Pro combines maximum precision with the highest possible input comfort. A clever double-tap function allows you to deactivate either only the right half or, for example, the entire touchpad when using an additional mouse. The smart functions also include automatic recognition of the palm of the hand: If a palm rests on the gliding surface while typing, the touchpad does not register this as accidental input.
Intel Core 12th Gen Processors

Performance-Upgrade:Neueste Intel-Prozessoren

Intels Tiger-Lake-Prozessoren aus der 11. Core-Generation vereinen überzeugende Leistung in allen multimedialen und alltäglichen Anwendungsbereichen mit einer eindrucksvollen Effizienz. Der Core i7-11370H und Core i5-11300H zählen zu den Spitzenmodellen im Bereich der aktuellen Vierkernprozessoren mit acht Threads. Das SCHENKER VISION 14 legt aber nicht nur leistungsseitig nach, sondern profitiert in dieser Ausstattungsvariante auch von Flüssigmetall-Wärmeleitpaste auf der CPU und einem großzügiger dimensionierten, stärkeren Kühlsystem, welches trotz der gesteigerten Systemleistung gleichzeitig einen leiseren und kühleren Betrieb der Komponenten ermöglicht.

Intel XE Grafiks

Integrated Intel Xe graphics 
Efficient multimedia genius

Intel’s Iris Xe chips take integrated graphics solutions to a completely new level. The modern GPUs are characterised not only by very high multimedia performance with low power consumption, but also by a modern feature set. These include hardware-accelerated decoding of AV1, HEVC or VP9 video material – ideal for playback and streaming without additional CPU load, which in turn ensures longer battery runtimes.

Exemplary connectivity
Flexibility is the key

The SCHENKER VISION 14 focuses on maximum flexibility: where many premium ultrabooks omit external connections and force you to purchase impractical adapter solutions, the versatile 14-inch model takes a more pragmatic approach: With Thunderbolt 4, a DisplayPort-enabled and USB travel power supply-compatible USB-C port, dual USB-A, a 2-in-1 audio jack, HDMI output and full-size SD card reader, it offers an extensive, modern range of external connectivity. A reliable Intel Wi-Fi 6 module provides stable and secure wireless network communication.

SCHENKER VISION 14 E22 left right
Thunderbolt

Versatile universal interface - Thunderbolt 4

Thunderbolt 4 is not only the new high-end interface for data exchange with the fastest, external SSDs: it also supports current docking stations, providing quick and flexible connections of multiple peripherals at a stationary workspace. Just like the regular USB-C port, the connector has an integrated DisplayPort stream and supports monitors up to 8K resolution. In combination with the HDMI output, the laptop natively supports up to three external monitors in addition to its internal display.

RAM, SSD and battery options - Perfectly outfitted

When it comes to extensive memory and storage capacities, the slim SCHENKER VISION 14 shows true flexibility. With up to 64 GB DDR4-3200 RAM it is well prepared for any application. Depending on individual preference, the ultrabook is available in an extremely light version weighing only 1.1 kg, with two M.2 SSD slots connected by a fast PCI Express 4.0 connection and a 53 Wh battery. A long life version is also available which weighs only 1.3 kg. This model integrates a 99 Wh battery (nearly twice the size) for extra-long runtimes and provides one M.2 SSD slot.

64GB RAM + 2 M.2 SSDs

Razor sharp

With its enhanced WQXGA resolution (2,560 x 1,600 pixels), the high-quality IPS panel has everything you need for relaxed, continuous work. In addition to the razor-sharp image, the display convinces with intense colours, high contrast and excellent black levels. The 16:10 format provides more vertical viewing area – practical, for example, for displaying two programme windows side by side or additional operating elements in a software program.

Realistic display

Especially in the field of professional image and video editing, the most accurate colour representation possible is required. The display scores highly with its high brightness of 350 nits and 99 % coverage of the sRGB colour space, making it suitable for even the most demanding visual-creative tasks. In addition, fast 240 Hz technology provides the right conditions for smooth gaming after work and the panel has an additional 60 Hz mode for energy-saving operation whilst on the move.

SCHENKER VISION 16 Pro L22 chassis

High-quality magnesium chassis  

Perfect workmanship

The torsion-resistant chassis of the SCHENKER VISION 16 Pro is made of a robust AZ91D magnesium alloy. In addition to increased stability, the high-end material ensures better temperatures: in contrast to the material used in conventional laptop housings, the magnesium alloy dissipates heat from components such as the graphics card and processor much faster, thus aiding cooling.

Ultraportable design

The lightest laptop of its kind

The SCHENKER VISION 16 Pro is the lightest high-performance laptop in the world and one of the thinnest 16-inch devices in its performance class. A weight of just 1.6 kg meets a very flat height of only 17.1 mm and the latest high-end processors and graphics cards with ground-breaking, modern features – perfect for anyone who is on the move a lot and does not want to miss out on very high content creation and application performance when realising demanding, professional projects.

SCHENKER VISION 16 L22 CPU

Intel Core i7-12700H

Impressive performance

Intel processors from the 12th Core generation bring the impressive performance of up to 14 computing cores to high-end notebooks. The Core i7-12700H is one of the spearhead mobile high-performance CPUs and, in accordance with the hybrid Big Little architecture, combines six performance and eight efficiency cores into a powerful computing unit. In multi-core applications, the processor trumps the performance of the previous generation by around 20 percent – and is optimally cooled thanks to an innovative liquid metal heat transfer medium.

SCHENKER VISION 16 Pro L22 NVIDIA

NVIDIA GeForce RTX 30  

Efficient 3D powerhouses

Fastest possible 3D rendering, first-class GPU acceleration in creative applications and the latest feature set in a phenomenal Thin&Light chassis: the SCHENKER VISION 16 Pro uses customised, efficiency-optimised versions of NVIDIA’s current top graphics chips for this purpose. Depending on individual performance requirements, there is a choice of an RTX 3080 with a full 16 GB of GDDR6 memory, an RTX 3070 Ti or an RTX 3060 as a high-performance entry-level option.

Wide choice of external ports  

State-of-the-art connectivity

With three display outputs ready for multi-monitor setups: Thunderbolt 4 and USB-C, each with integrated DisplayPort stream and the option to charge the laptop via a USB-C power supply, as well as HDMI 2.1 with direct connection to the NVIDIA graphics card, allow native image output to up to three additional external monitors. Thus, the laptop is perfectly prepared for creative multitasking and in combination with modern docking stations, excels at the stationary workplace. A card reader for full-size SD cards serves for convenient data exchange, with two USB-A ports for connecting further peripherals.

Up to 64 GB RAM & 2 M.2 SSDs  

Generous memory expansion

Despite the slim laptop design, the SCHENKER VISION 16 Pro consistently relies on plugged-in instead of soldered memory components and can therefore be configured and upgraded completely freely according to personal requirements. The maximum configuration includes up to 64 GB DDR5-4800 RAM and two lightning-fast M.2 SSDs of the latest generation – connected via PCI Express 4.0.

Comfortable keyboard

In productive use, the SCHENKER VISION 16 Pro’s keyboard, which is suitable for multiple typists’ ergonomic preferences, draws on a full range of functions – with a separate numberic keypad, dedicated full-size arrow keys and a practical Fn-Lock function for permanently switching the F keys to the secondary assignment. In addition to a clearly defined pressure point, the input device is characterised by a particularly quiet key stroke and a multi-level, adjustable brightness neutral white backlight.

Huge glass touchpad

On a generous gliding surface of 15.4 x 10 cm, the high-quality glass touchpad of the SCHENKER VISION 16 Pro combines maximum precision with the highest possible input comfort. A clever double-tap function allows you to deactivate either only the right half or, for example, the entire touchpad when using an additional mouse. The smart functions also include automatic recognition of the palm of the hand: If a palm rests on the gliding surface while typing, the touchpad does not register this as accidental input.

TECH SPECS

  • SVS16PL22
  • 16.0″ IPS | 16:10 | 2560×1600 px | 240 Hz (alternatively 60 Hz settable) | 350 nits | 99 % sRGB | non-glare
  • Intel Core i7-12700H | 6 P- & 8 E-cores/20 threads | up to 4.7 GHz | 24 MB cache | 40 W TDP
  • liquid metal compound ex factory
  • Intel Iris Xe Graphics | 96 Execution Units | integrated (iGPU)

  • NVIDIA GeForce RTX 3060 | 6 GB GDDR6 | 70 W TGP (+ 25 W Dynamic Boost 2.0) | dedicated (dGPU)

  • NVIDIA GeForce RTX 3070 Ti | 8 GB GDDR6 | 70 W TGP (+ 25 W Dynamic Boost 2.0) | dedicated (dGPU)

  • NVIDIA GeForce RTX 3080 | 16 GB GDDR6 | 70 W TGP (+ 25 W Dynamic Boost 2.0) | dedicated (dGPU)

    internal display, DP via USB-C connection : iGPU with NVIDIA Optimus
    HDMI connection: dGPU
    3 external displays directly addressable (more with MST adapter via USB-C)

    Please note for DisplayPort via USB-C:
    no support for VR headsets
    no support for G-SYNC (proprietary), but compatible with Adaptive Sync (incl. FreeSync and G-SYNC Compatible)

  • 2x DDR5 SO-DIMM | up to 64 GB and 4800 MHz | Dual Channel | max. 1.1 V
  • 2x M.2 2280 SSD via PCI Express 4.0 x4 (supports RAID 0/1)
  • stereo speakers
  • microphone with noise cancelling
  • Nahimic by SteelSeries software
  • white backlit keyboard with numeric keypad and full-size arrow keys
  • Fn lock function
  • Microsoft Precision Glass Touchpad, two integrated buttons | 154 x 100 mm (W x D)

Left:

  • 2-in-1 audio (headphone + mic)
  • card reader (SD/SDHX/SDXC)
  • USB-A 3.2 Gen1
  • USB-C 3.2 Gen2×1 (DisplayPort 1.4: yes | Power Delivery: yes*)


Right:

  • DC-in
  • HDMI 2.1 (G-SYNC compatible | HDCP 2.3)
    USB-A 3.2 Gen1 (powered)
  • Thunderbolt 4/USB-C 4.0 Gen3×1 (DisplayPort 1.4: yes | Power Delivery: yes*)

    *requirement: 20V/3.25A

  • Wi-Fi 802.11a/b/g/n/ac/ax + Bluetooth 5
  • Full HD webcam (Windows Hello support)
  • Kensington Lock
  • TPM 2.0 (via Intel PTT)
  • 180 watts (166 x 81 x 25 mm | 798 g incl. EU power cable)
  • changeable Li-poly battery with 80 Wh (internally screwed)
  • different battery charging profiles selectable in control center
  • display lid, top and bottom case made of magnesium alloy (AZ91D)
  • display frame made of plastic
  • 140° display opening angle
  • PH 1 screw heads
  • one-hand opening
  • ca. 1.6 kg
  • 353.7 x 245.3 x 17.1 mm
  • laptop (incl. battery), power supply, driver USB stick
