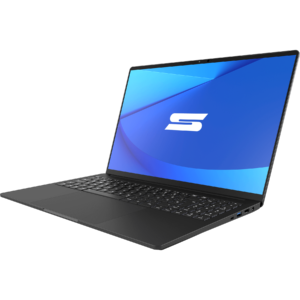

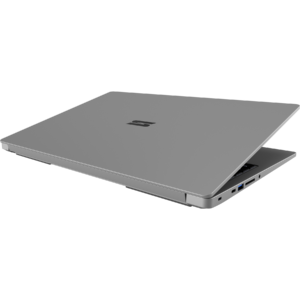

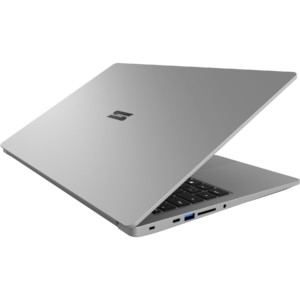

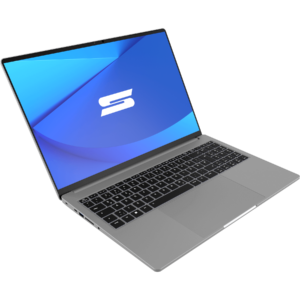

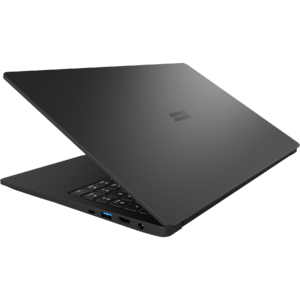

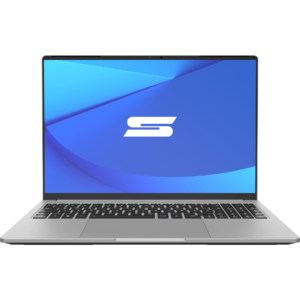

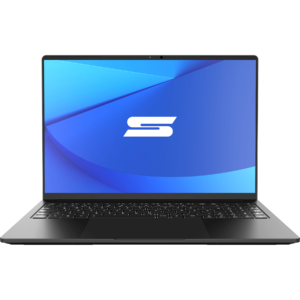

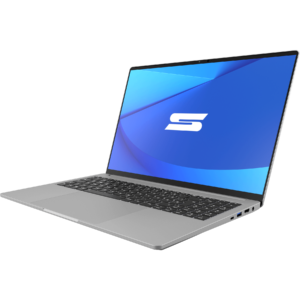

SCHENKER VISION 16

Lightweight premium 16-inch ultrabook: The SCHENKER VISION 16 excels with high application and multimedia performance, whilst retaining focus on a remarkably slim, lightweight and ultraportable design. With a high-performance 14-core processor, an optional ray-tracing NVIDIA graphics card and a high-resolution display in 16:10 format, this laptop is made for productive, mobile work. The exclusive style of the magnesium chassis, which weighs less than 1.5 kg, underlines the high-quality character of the model – which is available in silver or black. In video meetings, the VISION 16 comes equipped with a Windows Hello-compatible webcam with Full HD resolution.

SCHENKER VISION 16

Lightweight premium 16-inch ultrabook: The SCHENKER VISION 16 excels with high application and multimedia performance, whilst retaining focus on a remarkably slim, lightweight and ultraportable design. With a high-performance 14-core processor, an optional ray-tracing NVIDIA graphics card and a high-resolution display in 16:10 format, this laptop is made for productive, mobile work. The exclusive style of the magnesium chassis, which weighs less than 1.5 kg, underlines the high-quality character of the model – which is available in silver or black. In video meetings, the VISION 16 comes equipped with a Windows Hello-compatible webcam with Full HD resolution.

Gefertigt in
Deutschland

Maximale Performance

Indivudell
konfigurierbar

Zukunftssicheres Konzept

Razor sharp

With its enhanced WQXGA resolution (2,560 x 1,600 pixels), the high-quality IPS panel has everything you need for relaxed, continuous work. In addition to the razor-sharp image, the display convinces with intense colours, high contrast and excellent black levels. The 16:10 format provides more vertical viewing area – practical, for example, for displaying two programme windows side by side or additional operating elements in a software program.  

Realistic display

Especially in the field of professional image and video editing, the most accurate colour representation possible is required. The display scores highly with its high brightness of 350 nits and 99 % coverage of the sRGB colour space, making it suitable for even the most demanding visual-creative tasks. The high refresh rate of 90 Hz allows for smooth, fatigue-free viewing.

Gestochen scharf

Mit seiner erweiterten WQXGA-Auflösung (2.560 x 1.600 Pixel) bringt das hochwertige IPS-Panel alles mit, was für entspanntes Dauerarbeiten am Bildschirm nötig ist. Neben der gestochen scharfen Darstellung überzeugt das Display durch intensive Farben, hohen Kontrast und hervorragende Schwarzwerte. Das 16:10-Format sorgt für mehr vertikale Betrachtungsfläche – praktisch, um etwa zwei Programmfenster nebeneinander oder zusätzliche Bedienelemente in einer Software anzeigen zu lassen. 

Realistische Darstellung

Speziell im Bereich der professionellen Bild- und Videobearbeitung ist eine möglichst unverfälschte, akkurate Farbdarstellung gefragt. Das Display punktet durch eine hohe Helligkeit von 350 cd/m² sowie eine 99-prozentige Abdeckung des sRGB-Farbraums und ist folglich selbst für anspruchsvolle, visuell-gestalterische Aufgaben gewappnet. Ergänzend bietet schnelle 240-Hz-Technologie die richtigen Voraussetzungen für flüssiges Gaming nach Feierabend, mit Blick auf den stromsparenden Betrieb unterwegs beherrscht das Panel einen zusätzlichen 60-Hz-Modus. 

Razor-sharp: 3K display in 16:10 format

With a resolution of 2880 x 1800 pixels, the 380 nits bright 3K IPS display delivers a breathtakingly sharp and precise image. For creative professionals, the 16:10 screen format is a bonus: the expanded, vertical screen area makes it easier to work in common photo and video editing software and, last but not least, also provides extra viewing comfort when surfing the Internet. 99 percent coverage of the sRGB colour space, a particularly smooth refresh rate of 90 Hz and an opening angle of up to 160 degrees round off the features of this high-end display.

High-quality magnesium chassis

Perfect workmanship

The torsion-resistant chassis of the SCHENKER VISION 16 is made of a robust AZ91D magnesium alloy. In addition to increased stability, the high-end material ensures better temperatures: in contrast to the material used in conventional laptop housings, the magnesium alloy dissipates heat from components such as the graphics card and processor much faster, thus aiding cooling.
SCHENKER VISION 16 L22 chassis
SCHENKER VISION 16 L22 thin bezel

Ultraportable design

Light & slim

Weighing less than 1.5 kg and with an overall height of just 17.1 mm, the SCHENKER VISION 16 is one of the thinnest and lightest 16-inch laptops in the world; and thanks to the fully-fledged Core i7-12700H and optional GeForce RTX graphics, offers more than enough power for demanding applications and demanding multimedia projects. 
SCHENKER VISION 14 display

The housing of the SCHENKER VISION 14 is made of an innovative AZ91D magnesium alloy. As a result and depending on the selected configuration it weighs between 1.1 and 1.3 kilograms even when fully equipped. Nevertheless, the slim chassis is exceptionally stable. In addition to a high-quality feel, the material is also characterised by excellent thermal properties and thus provides the optimal conditions for quiet and cool operation with permanently high performance. As an extremely portable state-of-the-art lightweight, the SCHENKER VISION 14 sets a new standard.



High-quality magnesium chassis
Extremely light & robust

The housing of the SCHENKER VISION 14 is made of an innovative AZ91D magnesium alloy. As a result and depending on the selected configuration it weighs between 1.1 and 1.3 kilograms even when fully equipped. Nevertheless, the slim chassis is exceptionally stable. In addition to a high-quality feel, the material is also characterised by excellent thermal properties and thus provides the optimal conditions for quiet and cool operation with permanently high performance. As an extremely portable state-of-the-art lightweight, the SCHENKER VISION 14 sets a new standard.

Intel Core i7-12700H

14 core ultrabook

Ultraportable and loaded with performance. With an Intel Core i7-12700H, the SCHENKER VISION 14 proves what is possible: 6 performance cores, 8 efficiency cores and up to 20 threads provide significantly increased multi-threaded performance compared its predecessor (maximum of 4 cores and 8 threads). Thanks to a perfectly tuned cooling system and liquid metal thermal compound on the CPU, the premium ultrabook matches the performance increase with superior cooling capacity and quiet operation – a complete package that is unique in this size and weight class.
SCHENKER VISION 14 Intel
SCHENKER VISION 16 L22 CPU

Intel Core i7-12700H:
Impressive performance

Intel processors from the 12th Core generation bring the impressive performance of up to 14 computing cores to high-end notebooks. The Core i7-12700H is one of the spearhead mobile high-performance CPUs and, in accordance with the hybrid Big Little architecture, combines six performance and eight efficiency cores into a powerful computing unit. In multi-core applications, the processor trumps the performance of the previous generation by around 20 percent – and is optimally cooled thanks to an innovative liquid metal heat transfer medium.

SCHENKER VISION 16 L22 IntelXE

Integrated Intel Xe graphics :
Efficient multimedia genius

Intel’s Iris Xe chips take integrated graphics solutions to a completely new level. The efficient GPUs are characterised not only by very high multimedia performance with low power consumption, but also by a modern feature set. These include hardware-accelerated decoding of AV1, HEVC or VP9 video material – ideal for playback and streaming without additional CPU load, which in turn ensures longer battery runtimes.

SCHENKER VISION 14 Intel Iris XE

Integrated Intel Xe graphics 

Efficient multimedia genius

Intel’s Iris Xe chips take integrated graphics solutions to a completely new level. The modern GPUs are characterised not only by very high multimedia performance with low power consumption, but also by a modern feature set. These include hardware-accelerated decoding of AV1, HEVC or VP9 video material – ideal for playback and streaming without additional CPU load, which in turn ensures longer battery runtimes.

SCHENKER VISION 16 L22 NVIDIA

Dedicated GeForce RTX 3050 Ti

Content creation boost

NVIDIA’s GeForce RTX 3050 Ti is completely at home in the top configuration variant of the SCHENKER VISION 16. With 2,560 CUDA cores, the dedicated graphics card has the optimal performance reserves to let the slim and light laptop punch above its size – excelling in the field of professional content creation. A strong choice for GPU-accelerated editing of high-resolution photo or video material – leaving the hardware to do the work whilst you concentrate on the creative! Equipped with RT cores of the latest generation, the graphics card is also ready for the calculation of complex ray tracing effects – and is equally suitable as an entry point into the world of gaming. 
SCHENKER VISION 16 L22 ports

Wide choice of external ports  

State-of-the-art connectivity

With three display outputs ready for multi-monitor setups: Thunderbolt 4 and USB-C, each with integrated DisplayPort stream and the option to charge the laptop via a USB-C power supply, as well as HDMI 2.0 with connection to Intel’s efficient iGPU, allow native image output to up to three additional external monitors. Thus, the laptop is perfectly prepared for creative multitasking and in combination with modern docking stations, excels at the stationary workplace. A card reader for full-size SD cards serves for convenient data exchange, with two USB-A ports for connecting further peripherals.



SCHENKER VISION 16 L22 memory

Up to 64 GB RAM & 2 M.2 SSDs

Generous memory expansion

Despite the slim laptop design, the SCHENKER VISION 16 consistently relies on plugged-in instead of soldered memory components and can therefore be configured and upgraded completely freely according to personal requirements. The maximum configuration includes up to 64 GB DDR4 RAM and two lightning-fast M.2 SSDs of the latest generation – connected via PCI Express 4.0.

SCHENKER VISION 16 L22 touchpad

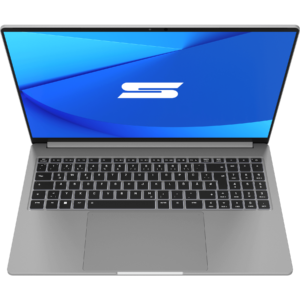

Comfortable keyboard

In productive use, the SCHENKER VISION 16’s keyboard, which is suitable for multiple typists’ ergonomic preferences, draws on a full range of functions – with a separate numberic keypad, dedicated full-size arrow keys and a practical Fn-Lock function for permanently switching the F keys to the secondary assignment. In addition to a clearly defined pressure point, the input device is characterised by a particularly quiet key stroke and a multi-level, adjustable brightness neutral white backlight.

Huge glass touchpad

On a generous gliding surface of 15.4 x 10 cm, the high-quality glass touchpad of the SCHENKER VISION 16 combines maximum precision with the highest possible input comfort. A clever double-tap function allows you to deactivate either only the right half or, for example, the entire touchpad when using an additional mouse. The smart functions also include automatic recognition of the palm of the hand: If a palm rests on the gliding surface while typing, the touchpad does not register this as accidental input.

RAM, SSD and battery options

Perfectly outfitted

When it comes to extensive memory and storage capacities, the slim SCHENKER VISION 14 shows true flexibility. With up to 64 GB DDR4-3200 RAM it is well prepared for any application. Depending on individual preference, the ultrabook is available in an extremely light version weighing only 1.1 kg, with two M.2 SSD slots connected by a fast PCI Express 4.0 connection and a 53 Wh battery. A long life version is also available which weighs only 1.3 kg. This model integrates a 99 Wh battery (nearly twice the size) for extra-long runtimes and provides one M.2 SSD slot.



Intel Core 12th Gen Processors

Performance-Upgrade:Neueste Intel-Prozessoren

Intels Tiger-Lake-Prozessoren aus der 11. Core-Generation vereinen überzeugende Leistung in allen multimedialen und alltäglichen Anwendungsbereichen mit einer eindrucksvollen Effizienz. Der Core i7-11370H und Core i5-11300H zählen zu den Spitzenmodellen im Bereich der aktuellen Vierkernprozessoren mit acht Threads. Das SCHENKER VISION 14 legt aber nicht nur leistungsseitig nach, sondern profitiert in dieser Ausstattungsvariante auch von Flüssigmetall-Wärmeleitpaste auf der CPU und einem großzügiger dimensionierten, stärkeren Kühlsystem, welches trotz der gesteigerten Systemleistung gleichzeitig einen leiseren und kühleren Betrieb der Komponenten ermöglicht.

Intel XE Grafiks

Integrated Intel Xe graphics 
Efficient multimedia genius

Intel’s Iris Xe chips take integrated graphics solutions to a completely new level. The modern GPUs are characterised not only by very high multimedia performance with low power consumption, but also by a modern feature set. These include hardware-accelerated decoding of AV1, HEVC or VP9 video material – ideal for playback and streaming without additional CPU load, which in turn ensures longer battery runtimes.

Exemplary connectivity
Flexibility is the key

The SCHENKER VISION 14 focuses on maximum flexibility: where many premium ultrabooks omit external connections and force you to purchase impractical adapter solutions, the versatile 14-inch model takes a more pragmatic approach: With Thunderbolt 4, a DisplayPort-enabled and USB travel power supply-compatible USB-C port, dual USB-A, a 2-in-1 audio jack, HDMI output and full-size SD card reader, it offers an extensive, modern range of external connectivity. A reliable Intel Wi-Fi 6 module provides stable and secure wireless network communication.

SCHENKER VISION 14 E22 left right
Thunderbolt

Versatile universal interface - Thunderbolt 4

Thunderbolt 4 is not only the new high-end interface for data exchange with the fastest, external SSDs: it also supports current docking stations, providing quick and flexible connections of multiple peripherals at a stationary workspace. Just like the regular USB-C port, the connector has an integrated DisplayPort stream and supports monitors up to 8K resolution. In combination with the HDMI output, the laptop natively supports up to three external monitors in addition to its internal display.

RAM, SSD and battery options - Perfectly outfitted

When it comes to extensive memory and storage capacities, the slim SCHENKER VISION 14 shows true flexibility. With up to 64 GB DDR4-3200 RAM it is well prepared for any application. Depending on individual preference, the ultrabook is available in an extremely light version weighing only 1.1 kg, with two M.2 SSD slots connected by a fast PCI Express 4.0 connection and a 53 Wh battery. A long life version is also available which weighs only 1.3 kg. This model integrates a 99 Wh battery (nearly twice the size) for extra-long runtimes and provides one M.2 SSD slot.

64GB RAM + 2 M.2 SSDs

Razor sharp

With its enhanced WQXGA resolution (2,560 x 1,600 pixels), the high-quality IPS panel has everything you need for relaxed, continuous work. In addition to the razor-sharp image, the display convinces with intense colours, high contrast and excellent black levels. The 16:10 format provides more vertical viewing area – practical, for example, for displaying two programme windows side by side or additional operating elements in a software program.

Realistic display

Especially in the field of professional image and video editing, the most accurate colour representation possible is required. The display scores highly with its high brightness of 350 nits and 99 % coverage of the sRGB colour space, making it suitable for even the most demanding visual-creative tasks. The high refresh rate of 90 Hz allows for smooth, fatigue-free viewing.

SCHENKER VISION 16 L22 chassis

High-quality magnesium chassis  

Perfect workmanship

The torsion-resistant chassis of the SCHENKER VISION 16 is made of a robust AZ91D magnesium alloy. In addition to increased stability, the high-end material ensures better temperatures: in contrast to the material used in conventional laptop housings, the magnesium alloy dissipates heat from components such as the graphics card and processor much faster, thus aiding cooling.

SCHENKER VISION 16 L22 thin bezel

Ultraportable design

Light & slim

Weighing less than 1.5 kg and with an overall height of just 17.1 mm, the SCHENKER VISION 16 is one of the thinnest and lightest 16-inch laptops in the world; and thanks to the fully-fledged Core i7-12700H and optional GeForce RTX graphics, offers more than enough power for demanding applications and demanding multimedia projects.

SCHENKER VISION 16 L22 CPU

Intel Core i7-12700H

Impressive performance

Intel processors from the 12th Core generation bring the impressive performance of up to 14 computing cores to high-end notebooks. The Core i7-12700H is one of the spearhead mobile high-performance CPUs and, in accordance with the hybrid Big Little architecture, combines six performance and eight efficiency cores into a powerful computing unit. In multi-core applications, the processor trumps the performance of the previous generation by around 20 percent – and is optimally cooled thanks to an innovative liquid metal heat transfer medium.

SCHENKER VISION 16 L22 IntelXE

Integrated Intel Xe graphics 

Efficient multimedia genius

Intel’s Iris Xe chips take integrated graphics solutions to a completely new level. The efficient GPUs are characterised not only by very high multimedia performance with low power consumption, but also by a modern feature set. These include hardware-accelerated decoding of AV1, HEVC or VP9 video material – ideal for playback and streaming without additional CPU load, which in turn ensures longer battery runtimes.

SCHENKER VISION 14 NVIDIA

Dedizierte GeForce RTX 3050 Ti   

Content-Creation-Beschleuniger

NVIDIA’s GeForce RTX 3050 Ti is completely at home in the top configuration variant of the SCHENKER VISION 14. With 2,560 CUDA cores, the dedicated graphics card has the optimal performance reserves to let the slim and light laptop punch above its size – excelling in the field of professional content creation. A strong choice for GPU-accelerated editing of high-resolution photo or video material – leaving the hardware to do the work whilst you concentrate on the creative! Equipped with RT cores of the latest generation, the graphics card is also ready for the calculation of complex ray tracing effects – and is equally suitable as an entry point into the world of gaming.

SCHENKER VISION 16 L22 NVIDIA

Dedicated GeForce RTX 3050 Ti

Content creation boost

NVIDIA’s GeForce RTX 3050 Ti is completely at home in the top configuration variant of the SCHENKER VISION 16. With 2,560 CUDA cores, the dedicated graphics card has the optimal performance reserves to let the slim and light laptop punch above its size – excelling in the field of professional content creation. A strong choice for GPU-accelerated editing of high-resolution photo or video material – leaving the hardware to do the work whilst you concentrate on the creative! Equipped with RT cores of the latest generation, the graphics card is also ready for the calculation of complex ray tracing effects – and is equally suitable as an entry point into the world of gaming.

Wide choice of external ports  

State-of-the-art connectivity

With three display outputs ready for multi-monitor setups: Thunderbolt 4 and USB-C, each with integrated DisplayPort stream and the option to charge the laptop via a USB-C power supply, as well as HDMI 2.0 with connection to Intel’s efficient iGPU, allow native image output to up to three additional external monitors. Thus, the laptop is perfectly prepared for creative multitasking and in combination with modern docking stations, excels at the stationary workplace. A card reader for full-size SD cards serves for convenient data exchange, with two USB-A ports for connecting further peripherals.

Up to 64 GB RAM & 2 M.2 SSDs  

Generous memory expansion

Despite the slim laptop design, the SCHENKER VISION 16 consistently relies on plugged-in instead of soldered memory components and can therefore be configured and upgraded completely freely according to personal requirements. The maximum configuration includes up to 64 GB DDR4 RAM and two lightning-fast M.2 SSDs of the latest generation – connected via PCI Express 4.0.

Comfortable keyboard

In productive use, the SCHENKER VISION 16’s keyboard, which is suitable for multiple typists’ ergonomic preferences, draws on a full range of functions – with a separate numberic keypad, dedicated full-size arrow keys and a practical Fn-Lock function for permanently switching the F keys to the secondary assignment. In addition to a clearly defined pressure point, the input device is characterised by a particularly quiet key stroke and a multi-level, adjustable brightness neutral white backlight.

Huge glass touchpad

On a generous gliding surface of 15.4 x 10 cm, the high-quality glass touchpad of the SCHENKER VISION 16 combines maximum precision with the highest possible input comfort. A clever double-tap function allows you to deactivate either only the right half or, for example, the entire touchpad when using an additional mouse. The smart functions also include automatic recognition of the palm of the hand: If a palm rests on the gliding surface while typing, the touchpad does not register this as accidental input.

TECH SPECS

  • SVS16L22
  • 16.0″ IPS | 16:10 | 2560×1600 px | 90 Hz | 350 nits | 99 % sRGB | non-glare
  • Intel Core i7-12700H | 6 P- & 8 E-cores/20 threads | up to 4.7 GHz | 24 MB cache | 45+ W TDP
  • liquid metal compound ex factory
  • Intel Iris Xe Graphics | 96 Execution Units | integrated (iGPU)

  • NVIDIA GeForce RTX 3050 Ti | 4 GB GDDR6 | 50 W TGP (+15 W Dynamic Boost) | dedicated (dGPU) | optional

    internal display, HDMI, DP via USB-C connection : iGPU (with NVIDIA Optimus if RTX 3050 Ti built in)
    3 external displays directly addressable (more with MST adapter via USB-C)

    no support for VR headsets
    no support for G-SYNC (proprietary), but compatible with Adaptive Sync (incl. FreeSync and G-SYNC Compatible)

  • 2x DDR4 SO-DIMM | up to 64 GB and 3200 MHz | Dual Channel | max. 1.2 V
  • 2x M.2 2280 SSD* via PCI Express 4.0 x4 (supports RAID 0/1)

    *second slot can only fit single-sided SSDs
  • stereo speakers
  • microphone with noise cancelling
  • Nahimic by SteelSeries software
  • white backlit keyboard with numeric keypad and full-size arrow keys
  • Fn lock function
  • Microsoft Precision Glass Touchpad, two integrated buttons | 154 x 100 mm (W x D)

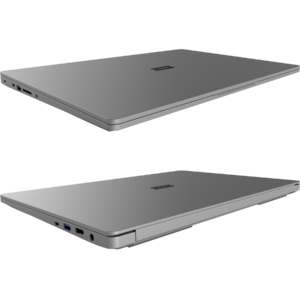

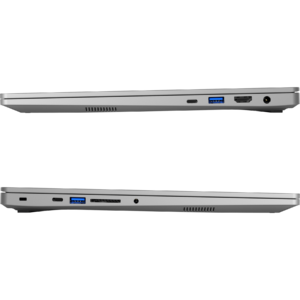

Left:

  • 2-in-1 audio (headphone + mic)
  • card reader (SD/SDHX/SDXC)
  • USB-A 3.2 Gen1
  • USB-C 3.2 Gen2×1 (DisplayPort 1.4: yes | Power Delivery: yes*)


Right:

  • DC-in
  • HDMI 2.0b (with HDCP 2.2)
  • USB-A 3.2 Gen1 (powered)
  • Thunderbolt 4/USB-C 4.0 Gen3×1 (DisplayPort 1.4: yes | Power Delivery: yes*)

    *requirement: 20V/3.25A
  • Wi-Fi 802.11a/b/g/n/ac/ax + Bluetooth 5
  • Full HD webcam (Windows Hello support)
  • Kensington Lock
  • TPM 2.0 (via Intel PTT)
  • 90 watts with Iris Xe (140 x 65 x 25 mm | 513 g incl. EU power cable)
  • 120 watts with RTX 3050 Ti (160 x 76 x 26 mm | 584 g incl. EU power cable)
  • changeable Li-poly battery with 80 Wh (internally screwed)
  • different battery charging profiles selectable in control center

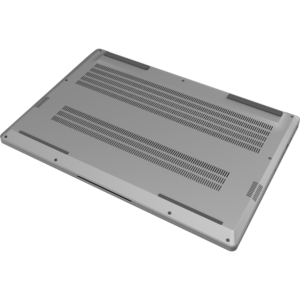

  • display lid, top and bottom case made of magnesium alloy (AZ91D)
  • display frame made of plastic
  • 140° display opening angle
  • PH 1 screw heads
  • one-hand opening
  • ca. 1.45 kg with Iris Xe
  • ca. 1.5 kg with RTX 3050 Ti
  • 353.7 x 245.3 x 17.1 mm
  • laptop (incl. battery), power supply, driver USB stick
