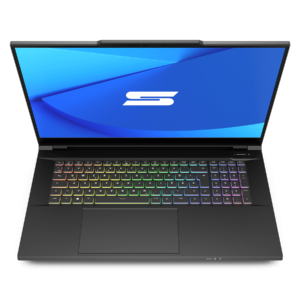

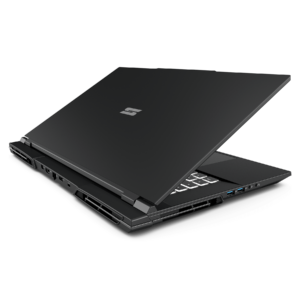

SCHENKER KEY 17 Pro
Uncompromising power, maximum productivity: thanks to the high-performance combination of top components, state-of-the-art connectivity, and excellent displays, the SCHENKER KEY 17 Pro is a superlative high-end workstation. The mobile powerhouse, crafted from high-quality aluminium, combines the latest and fastest hardware, including graphics cards up to the NVIDIA GeForce RTX 4090 and Intel’s Core i9-14900HX with 24 cores and 32 threads. As a result, the professional laptop provides impressive and sustained desktop-level performance. The long list of high-end features includes up to 96 GB RAM, an SSD connection via PCI Express 5.0 and a long-lasting 99 Wh battery.
Gefertigt in
Deutschland
Performance
Indivudell
konfigurierbar
Konzept
GeForce RTX 40 at full capacity
Maximum GPU acceleration
Featuring the NVIDIA GeForce RTX 4090 with a whopping 16 GB VRAM and the RTX 4080 with 12 GB VRAM, the SCHENKER KEY 17 Pro not only offers the two fastest laptop GPUs with the maximum memory expansion but is also able to run them continuously and performance-focused at the limits of the maximum power limits permitted by NVIDIA. In addition to dedicated RT cores for ray tracing calculations, the GPUs are also characterised by tensor cores of the latest generation, which can, for example, handle highly specialised AI computing processes significantly faster.

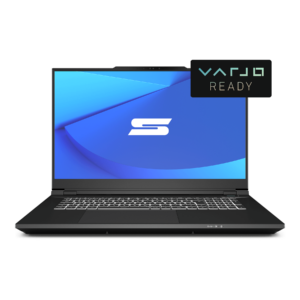

Perfect for Virtual Reality
The KEY 17 Pro is the most powerful mobile extended and virtual reality workstation from SCHENKER. The high-performance RTX 40 graphics cards accelerate the calculation of complex content, while the generously graphics memory holds high-resolution textures for the representation of immersive environments – regardless of whether this involves training courses, the conception of near-realistic three-dimensional product designs that look as if they are real or highly specialised AEC applications in virtual reality.
CAD, 3D modelling and rendering
The choice of the latest high-end components also makes the SCHENKER KEY 17 Pro a top performer for all other professional, demanding software environments. With maximum computing acceleration, this flagship handles workloads from areas such as 3D CAD environments and 3D object modelling. The laptop also handles all processes around the most demanding real-time renderings in leading engines such as Unreal or Unity with ease.
High-end connection in a double pack
Thunderbolt 5
Two brand new Thunderbolt 5 ports elevate the KEY 17 Pro to the apex of the premium segment. Both are directly connected to the high-performance NVIDIA graphics card and thus not only function as connections for additional external monitors but are also compatible with all current VR headsets. One of the ports boasts Power Delivery capability, offering unparalleled flexibility for on-the-go charging. Thunderbolt 5 not only supports lightning-fast external SSDs but also multifunctional docking stations, enabling seamless connection of all peripherals to the laptop with just one cable – be it input devices, monitors, networks, or printers.
Up to 3 SSDs & 96 GB RAM
Flexible storage giant
In line with the uncompromisingly implemented high-end concept, the SCHENKER KEY 17 Pro allows maximum expansion with up to three M.2 SSDs – more than enough to always have even the most extensive data libraries at hand. The primary slot supports the future-oriented PCI Express 5.0 standard – for even faster read and write operations. In addition, the high-performance workstation has two sockets for up to 96 GB of plugged-in DDR5 RAM and can be upgraded later if required.
Dedizierter Nummernblock & Sondertasten
Komfortable Full-Size-Tastatur
Bestens ausgestattet für den produktiven Einsatz: Mit einem vollwertigen, dedizierten Nummernblock, Navigationstasten und zusätzlichen Full-Size-Pfeiltasten besticht die Tastatur des SCHENKER KEY 17 durch hohe funktionale Vielfalt. Sie verbindet die Präzision eines klar definierten Druckpunkts für Vielschreiber mit der Möglichkeit zur individuellen Farbanpassung der mehrstufig regelbaren LED-Einzeltastenbeleuchtung – für eine optimale Ablesbarkeit in jeder Situation.
Intel Core i9-14900HX
Performance redefined
Intel Core 14th gen high-performance processors deliver desktop performance in mobile power workstations with up to 24 cores and 32 threads. Featuring the Core i9-14900HX, the SCHENKER KEY 17 Pro incorporates the ultimate top-of-the-range model, which is characterised by a boost clock of up to 5.8 GHz and a generous 36 MB cache. The cooling system, which is outfitted with extensive capacity, allows the processor to run continuously in the maximum performance range – in this way, the laptop works quickly, efficiently and without annoying waiting times even in highly parallelised applications.
- WQHD
- 4K
Particularly suited for colour-accurate tasks in professional image and video projects, the high-resolution WQHD panel (2,560 x 1,440 pixels) delivers a razor-sharp display and covers both the sRGB and the extended DCI-P3 colour space to 99 percent. IPS technology guarantees powerful colours and high contrasts, while the combination of a 240 Hz fast refresh rate with G-SYNC support allows for exceptionally smooth playback.
Digital-visual design processes require the highest standard of professional display quality. The KEY 17 Pro’s high-resolution 4K display (3,840 x 2,160 pixels) excels in terms of precision and colour fidelity – with 99 % coverage of both the sRGB and the extended DCI-P3 colour space and a high brightness of 400 nits. As is typical for IPS, it also features extraordinary colour brilliance and first-class contrasts. G-SYNC support and fast 144 Hz technology enable particularly smooth playback.
- WQHD
- 4K
Particularly suited for colour-accurate tasks in professional image and video projects, the high-resolution WQHD panel (2,560 x 1,440 pixels) delivers a razor-sharp display and covers both the sRGB and the extended DCI-P3 colour space to 99 percent. IPS technology guarantees powerful colours and high contrasts, while the combination of a 240 Hz fast refresh rate with G-SYNC support allows for exceptionally smooth playback.
Digital-visual design processes require the highest standard of professional display quality. The KEY 17 Pro’s high-resolution 4K display (3,840 x 2,160 pixels) excels in terms of precision and colour fidelity – with 99 % coverage of both the sRGB and the extended DCI-P3 colour space and a high brightness of 400 nits. As is typical for IPS, it also features extraordinary colour brilliance and first-class contrasts. G-SYNC support and fast 144 Hz technology enable particularly smooth playback.
- WQHD
- 4K
Speziell für farbverbindliche Arbeiten im Rahmen professioneller Bild- und Videoprojekte bietet das hochauflösende WQHD-Display (2.560 x 1.440 Pixel) eine gestochen scharfe Darstellung und deckt sowohl der sRGB- als auch den erweiterten DCI-P3-Farbraum zu jeweils 99 Prozent ab. IPS-Technologie garantiert kraftvolle Farben und hohe Kontraste, während die Kombination einer 240 Hz schnellen Bildwiederholrate mit G-SYNC-Unterstützung eine außerordentlich flüssige Wiedergabe erlaubt.
Digital-visuelle Gestaltungsprozesse verlangen nach professioneller Darstellungsqualität auf höchstem Niveau. Das hochauflösende 4K-Display (3.840 x 2.160 Pixel) des KEY 17 Pro läuft in puncto Präzision und Farbtreue zu Bestform auf – mit einer jeweils 99-prozentigen Abdeckung des sRGB- sowie des erweiterten DCI-P3-Farbraums und einer hohen Helligkeit von 400 cd/m². IPS-typisch besticht es durch eine außerordentliche Farbbrillanz und erstklassige Kontraste. G-SYNC-Unterstützung und schnelle 144-Hz-Technologie ermöglichen eine besonders flüssige Wiedergabe.
Best efficiency & performance
Automatic display switching
Thanks to Advanced Optimus, the laptop automatically switches the display connection between the dedicated NVIDIA graphics chip and the highly efficient, integrated GPU of the processor during operation. Depending on the application, the SCHENKER KEY 17 Pro thus either calls up the maximum performance or works with optimum efficiency and consequently achieves a longer battery life. As an alternative to Advanced Optimus, it is possible to switch the display connection manually via a MUX switch.
Flexibly expandable
Convincing connectivity
Its generous connectivity makes the SCHENKER KEY 17 Pro the ideal choice both at a stationary workplace and on the move. Alongside two USB-A and two Thunderbolt 5 ports with integrated DisplayPort stream, there is an HDMI 2.1 and a Mini DisplayPort 1.4a, each with dGPU connection. The laptop allows you to drive up to three external monitors and the internal display simultaneously. Separate audio jacks for headphones and microphone (with S/PDIF support), a Windows Hello-compatible Full HD webcam with noise reduction as well as fast 2.5 Gigabit LAN and optional Wi-Fi 7 round off the extensive features.
High-end connection in a double pack
Thunderbolt 5
Two brand new Thunderbolt 5 ports elevate the KEY 17 Pro to the apex of the premium segment. Both are directly connected to the high-performance NVIDIA graphics card and thus not only function as connections for additional external monitors but are also compatible with all current VR headsets. One of the ports boasts Power Delivery capability, offering unparalleled flexibility for on-the-go charging. Thunderbolt 5 not only supports lightning-fast external SSDs but also multifunctional docking stations, enabling seamless connection of all peripherals to the laptop with just one cable – be it input devices, monitors, networks, or printers.
Up to 3 SSDs & 96 GB RAM
Flexible storage giant
In line with the uncompromisingly implemented high-end concept, the SCHENKER KEY 17 Pro allows maximum expansion with up to three M.2 SSDs – more than enough to always have even the most extensive data libraries at hand. The primary slot supports the future-oriented PCI Express 5.0 standard – for even faster read and write operations. In addition, the high-performance workstation has two sockets for up to 96 GB of plugged-in DDR5 RAM and can be upgraded later if required.
Convenient input devices
Highly functional precision
Whether for frequent typists, shortcut users or in spreadsheets – with its separate number pad, full-size arrow keys and dedicated function and navigation keys, the keyboard of the SCHENKER KEY 17 Pro offers maximum functional diversity. Thanks to the clearly defined pressure point, the keyboard delivers a high level of input comfort and is always easily useable even in dark environments: A multi-level adjustable per-key LED backlight allows free colour selection. A convenient Fn lock enables permanent switching of the F keys to their secondary functions. The upgraded, high-quality touchpad is characterised by maximum precision and excellent gliding characteristics.
TECH SPECS
- SKE17PM24
- 17.3″ IPS | 2560×1440 px | 240 Hz (alternatively 60 Hz settable) | G-SYNC | 300 nits | 99 % sRGB/DCI-P3 | non-glare
- 17.3″ IPS | 3840×2160 px | 144 Hz (alternatively 60 Hz settable) | G-SYNC | 400 nits | 99 % sRGB/DCI-P3 | non-glare
- Intel HM770
- Intel Core i9-14900HX | 8 P- & 16 E-cores/32 threads | up to 5.8 GHz | 36 MB cache | 55+ W TDP
-
Intel Iris UHD Graphics | 32 Execution Units | integrated (iGPU)
-
NVIDIA GeForce RTX 4080 | 12 GB GDDR6 | 150 W TGP* (+ 25 W Dynamic Boost) | dedicated (dGPU)
-
NVIDIA GeForce RTX 4090 | 16 GB GDDR6 | 150 W TGP* (+ 25 W Dynamic Boost) | dedicated (dGPU)
display connection: iGPU with NVIDIA Optimus or dGPU (via Advanced Optimus/MUX switch)
HDMI, Mini DisplayPort, DP via TB4/USB-C connection: dGPU
3 external displays directly addressable (additional to the internal display)
VR Ready
- control center with customisable fan curves, battery charging profiles, keyboard macros etc.
- four pre-configured performance profiles (quickly changeable with Fn+F3)
- Windows installation without additional third-party software (for configurations with operating system)
- 2x DDR5 SO-DIMM | Dual Channel | max. 96 GB | max. 5600 MHz¹⁾ | max. 1.1 V
¹⁾Currently available 32/48 GB DDR5 modules are operated by Intel’s Core HX series with DDR5-5200 CL42 as maximum.
- 1x M.2 2280 SSD via PCI Express 5.0 x4
2x M.2 2280 SSD via PCI Express 4.0 x4downwards compatible
supports RAID 0/1 (max. PCI Express 4.0)
- stereo speakers
- smart amplifier
- S/PDIF-out (optical)
- microphone with noise cancelling
- Sound Blaster Studio Pro
- keyboard with per-key RGB backlight, full-fledged numeric keypad and full-size arrow keys
- Microsoft Precision Touchpad, two integrated buttons | 150 x 90 mm (W x D)
- innovative surface material with optimised glide characteristics
- automatic palm recognition to avoid false inputs
- supports scrolling, tapping, swiping and other multi-finger gestures as defined by operating system

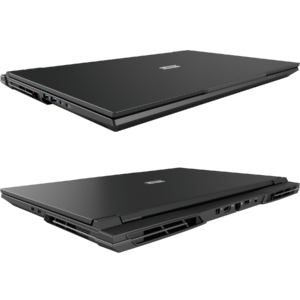

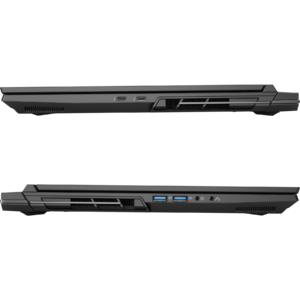

Left:
- 2-in-1 audio (mic-in or S/PDIF optical)
- headphone-out (compatible with combo jack headsets)
- 2x USB-A 3.2 Gen2 (1x powered)

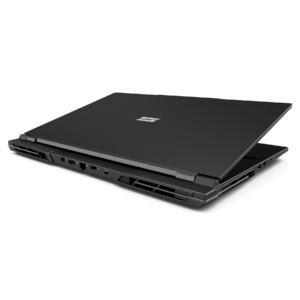

Rear:
- DC-in
- RJ45 Port (2.5 GbE)
- HDMI 2.1 (G-SYNC compatible | HDCP 2.3 | 48 Gbps)
- Mini DisplayPort 1.4a (G-SYNC compatible | 32.4 Gbps)
Right:
- Thunderbolt 5/USB4 v2 (80 Gbps | DisplayPort 1.4a | 100 W Power Delivery)2)
- Thunderbolt 5/USB4 v2 (80 Gbps | DisplayPort 1.4a)2)
2)Details:
Thunderbolt 5 with 80 Gbps bidirectional
USB4 v2 with 80 Gbps bidirectional
Both ports can be utilised simultaneously without bandwidth limitation
Support for Bandwidth Boost (up to 120 Gbps)
USB Power Delivery: 20V/5A (100 watts), min. 20V/4.5A (90 watts)
Power supply for peripherals: max. 5V/3A (15 watts)
Supports 2 DisplayPort streams with a total of 32.4 Gbps
Supports NVIDIA G-SYNC and AMD FreeSync
Supports VR headsets
- Intel Killer E3100X 2.5 GbE LAN (supports Wake on LAN and LAN/PXE boot)
- Wi-Fi 7 + Bluetooth 5
- Intel Killer DoubleShot Pro (in combination with Intel Killer Wi-Fi module)
- Full HD webcam with Temporal Noise Reduction (Windows Hello compatible)
- Kensington Lock (at the rear)
- TPM 2.0 (via dTPM)
- Secure Boot
- support for biometrical login via Windows Hello
- support for hardware encryption with compatible SSDs
- 330 watts (185 x 85 x 36 mm | 1178 g incl. EU power cable)
- changeable 99 Wh Li-Poly-battery (internally screwed)
- different battery charging profiles settable in control center or BIOS (FlexiCharger))
- display lid, top and bottom case made of aluminium
- display frame made of plastic
- 130° display opening angle
- PH 0 screw heads
- one-hand opening
- ca. 3.4 kg
- 396 x 278 x 24.9 mm (W x D x H)
- laptop (incl. battery), power supply, driver USB stick
